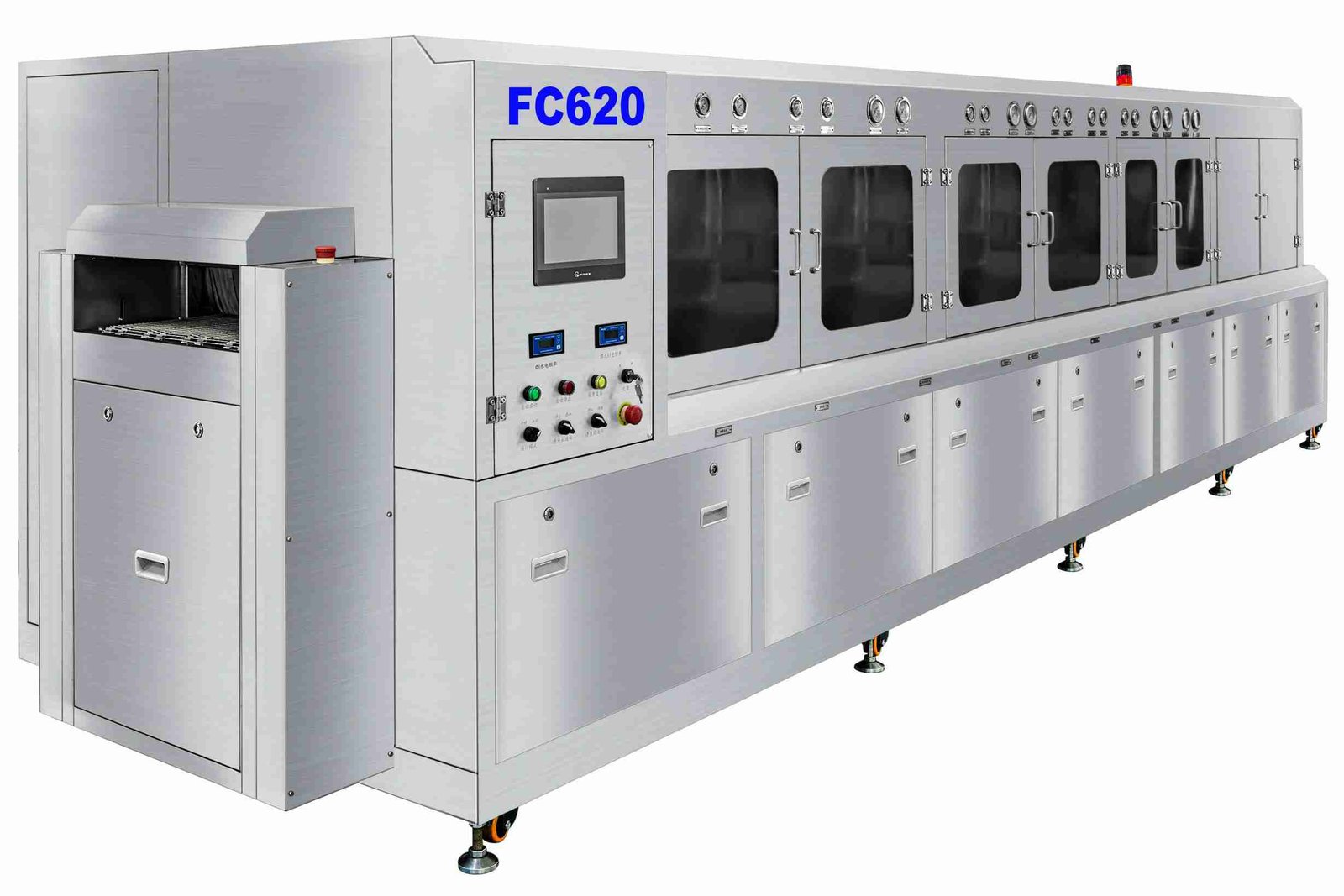

FC620 Inline Flip Chip semiconductor Cleaner
Click to enlarge
FC610 BGA Ball Mount Flux Cleaning Equipment In-line Aqueous Cleaning Machine
BGA Ball Mount Flux Cleaning Equipment In-line Aqueous Cleaning Machine FC610
Back to products
FC660 Inline Flip Chip semiconductor Cleaner
FC660 Flip Chip Inline Cleaning Machine Semiconductor Cleaning System PCBA Cleaner

FC620 Inline Cleaning Machine PCBA Cleaner

FC620 is a high-performance Inline Semiconductor Package Cleaning Machine designed for a wide range of semiconductor packages, including LEADFRAME, IPM, BGA, CSP, and SIP. It is primarily used for the efficient removal of post-soldering flux residues.
It’s a PC-based control system and a mesh belt conveyor system, the FC620 utilizes top-and-bottom spray cleaning combined with multi-stage rinsing. As a new-generation, high-precision inline cleaning system, it ensures superior cleaning results and high stability during continuous production.

Category: Tags: , , , ,
Description

Features

SUS304 Stainless Steel: High rigidity, temperature/acid-alkali resistance, leak-proof.

High-Volume Inline System: For mass cleaning of packaged chips.

Spray Cleaning: Efficiently removes flux and organic/inorganic contaminants.

Workflow: chemical cleaning + multi-stage DI rinsing + extended hot air drying.

Auto Refill: Cleaning fluid and DI water auto-replenished.

Adjustable Parameters: Cleaning, rinsing, chemical isolation, air-knife pressure.

High-Pressure & Flow: Superior cleaning performance.

DI Water Monitoring: Equipped with rinsing water resistivity monitor.

Control System: PC-based, bilingual (CN/EN) GUI.

Integration & Options: Connectable to form auto line; optional SECS/GEM, chemical concentration detection & auto-compensation.

Specification document

Item Basic Specifications
Conveyor Belt Width 600 mm
Conveyor Speed 0.1~1.5 m/min
Conveyor Height 900 ± 50 mm
Conveyor Direction Left to Right
Cleaning Height 50 mm
Cleaning/Rinsing Tank Capacity 320 L / 140L
Filtration 1µm
DI Water Consumption 600~1000 L/H
Air Exhaust Volume 42 m³/H
Control Method PC + PLC
Power / Air Supply 380VAC, 3P, 50Hz, 120KW /0.5 Mpa, 200 L/min
DI Water Resistivity 0~18 MΩ
Machine Dimensions L6350*W1750*H1850 mm
Machine Weight 3200 KG



Certificate

Our factory is certified with ISO9001 standards, and meets the requirements for CE safety certification.
SPERTAR factory with ISO9001 certification and CE safety certification for SMT cleaning equipment manufacturing

Why Choose us

ACTSPRAY provides midle-high-class cleaning equipment solutions for the SMT and semiconductor industries.

– We have advanced and automated cleaning and drying technologies for perfect cleaning results.
– We made standard machines & custom solutions fully meet varied production needs.
– We have professional after-sales team provides all-round reliable support.
– We own proven rich experience in serving mainstream semiconductor manufacturers worldwide.
