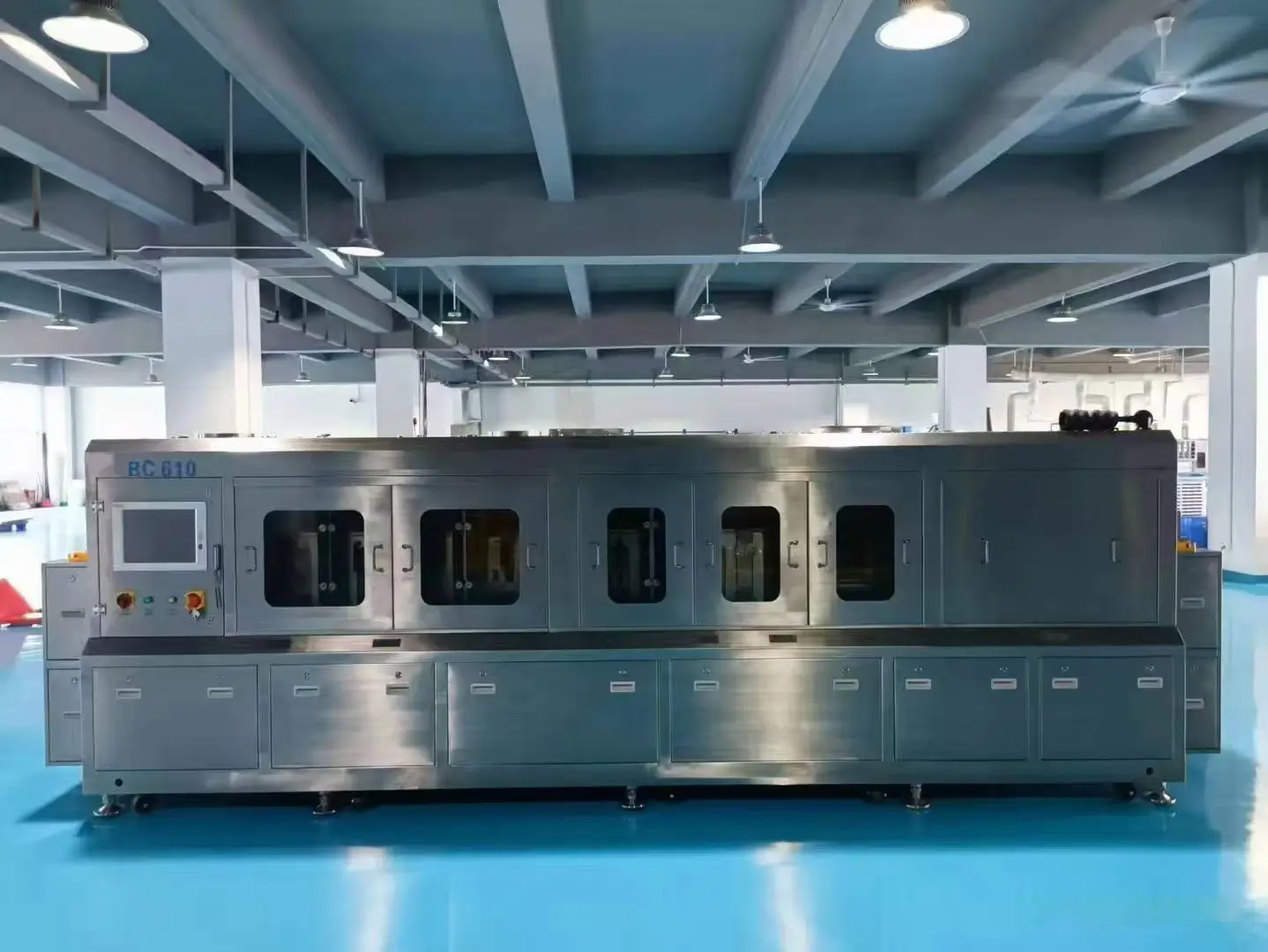

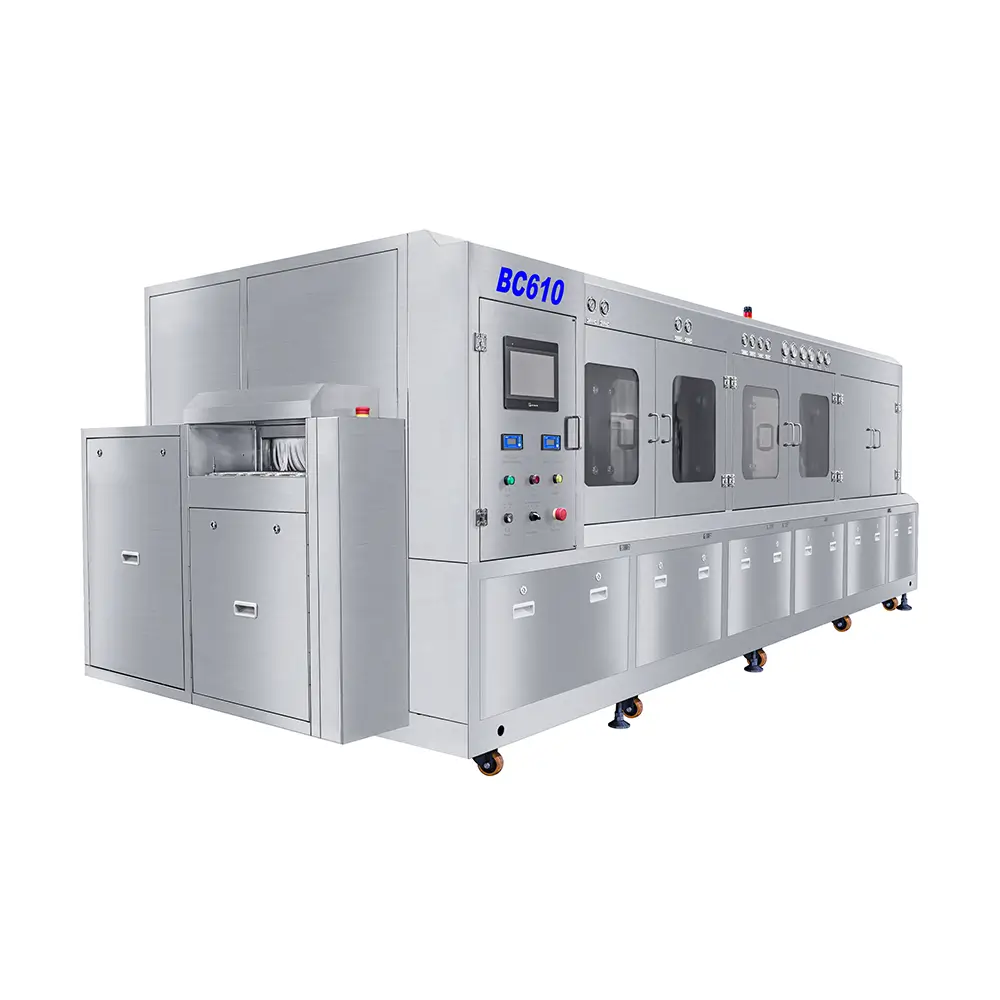

Advanced Inline PCB Cleaning Solution for Removing Flux Residue in Large Batch PCBA Manufacturing.
Why Choose BC610 Inline PCB Cleaning Machine?
1. Fully Automatic Inline Cleaning System for Mass Production
The BC610 is developed for high-volume PCBA manufacturing environments requiring continuous and stable cleaning performance.
The complete automatic cleaning process includes:
Pre-cleaning → Cleaning → Chemical Isolation → Pre-rinsing → Rinsing → Final Rinsing → Air Knife Drying → Hot Air Oven Drying
The entire process is controlled automatically, reducing manual operation, improving production efficiency, and ensuring consistent cleaning quality from the first PCB to the last.
2. Superior Flux Residue Removal Performance
Flux residues left after soldering processes can cause:
- Electrochemical migration (ECM)
- Electrical leakage
- Poor reliability
- Conformal coating defects
- Field failures
The BC610 uses a combination of high-pressure spray cleaning technology and optimized nozzle design to effectively remove:
- Rosin flux residue
- No-clean flux residue
- Water-soluble flux
- Organic residues
- Manufacturing particles
It is suitable for cleaning complex PCB assemblies with high-density components and fine-pitch structures.
Key Features of BC610 Automatic PCB Cleaning Machine
Durable SUS304 Stainless Steel Construction
The complete machine body is manufactured with high-quality SUS304 stainless steel, providing:
- Excellent corrosion resistance
- Long-term industrial durability
- Stable operation in harsh production environments
- More than 15 years service lifespan under proper maintenance
High-Pressure Upper and Lower Spray Cleaning System
The BC610 adopts a dual-side spray structure with:
- Upper and lower spray cleaning
- Adjustable chemical spray pressure
- Adjustable DI water spray pressure
- Customized spray nozzles
The optimized spray system provides powerful cleaning capability for:
- Dense PCB assemblies
- Fine-pitch components
- Low-standoff packages
- High-reliability electronic products
Multi-Stage Cleaning and Rinsing Process
The advanced multi-stage process separates cleaning chemicals and rinsing water to maximize cleanliness:
Chemical Cleaning Section
High-pressure chemical spray removes stubborn flux contamination.
Chemical Isolation Section
Prevents chemical carry-over into the rinsing process.
Multi-Stage DI Water Rinsing
Removes chemical residues and improves surface cleanliness.
Final Rinse with Resistivity Monitoring
Ensures stable rinsing quality by monitoring water conductivity in real time.
Real-Time DI Water Quality Monitoring System
The integrated resistivity monitoring system continuously checks rinsing water quality during operation.
Benefits:
- Real-time cleanliness control
- Stable cleaning results
- Reduced water consumption
- Improved process reliability
Intelligent Water Management System
The BC610 features automatic cleaning fluid management:
- Automatic waste liquid discharge
- DI water overflow design
- Water-saving operation
The overflow design updates cleaner water from the final stage to previous stages, significantly reducing DI water consumption.
Powerful Drying System for Moisture-Free PCBA
Complete drying is essential after PCB cleaning.
The BC610 integrates:
Air Knife Drying
High-speed airflow removes surface water quickly.
Hot Air Oven Drying
Provides deep and uniform drying performance for complex PCB assemblies.
Advantages:
- No water marks
- No moisture residue
Smart PLC + Touch Panel Control
The BC610 is equipped with an industrial PLC control system and Windows-based touchscreen operation interface.
Features:
- Easy operation
- Bilingual interface
- Real-time machine status display
- Automatic process control
- Emergency stop protection
Operators can easily monitor and adjust cleaning parameters according to production requirements.
Optional Intelligent Functions
Liquid Concentration Detection & Compensation System
Optional automatic concentration monitoring helps maintain stable cleaning chemical performance.
Functions:
- Real-time chemical concentration detection
- Automatic chemical adding
MES Integration System
The BC610 supports optional MES connection software for smart manufacturing environments.
MES functions include:
- Machine status monitoring
- Production data collection
- Factory automation integration
Applications of BC610 Automatic PCB Cleaning Machine
The BC610 is widely used for cleaning:
Electronics Manufacturing
Automotive Electronics
Medical Devices
Aerospace & Defense Electronics
Semiconductor Package
AI Server
Specification
| Item | Technical Specifications |
| Conveyor Belt Width | 600 mm |
| Conveyor Belt Speed | 100 ~ 150 mm/min |
| Conveyor Belt Height | 900 ± 50 mm |
| PCBA Conveying Direction | Left to Right |
| PCBA Size | Max. W600 x L400 x H100 mm |
| Cleaning Fluid Tank Capacity | 240 L |
| Pre-rinsing/Rinsing Tank Capacity | 40 L / 120 L |
| Cleaning Temp | RT ~ 80℃ |
| Pre-rinsing/Rinsing Temp | RT ~ 60℃ |
| Drying Temp | RT ~ 100℃ |
| DI Water Consumption | 400 ~ 800 L/H |
| Air Exhaust Volume | 36 m³/H |
| Control Method | PLC + TP |
| Power Supply | 380VAC, 3P, 50/60Hz, 110KW, 0.5~0.7Mpa, 200 L/min |
| Machine Dimensions | L5200 x W1750 x H1650 mm |
| Machine Weight | 2600 KG |
