Product Overview

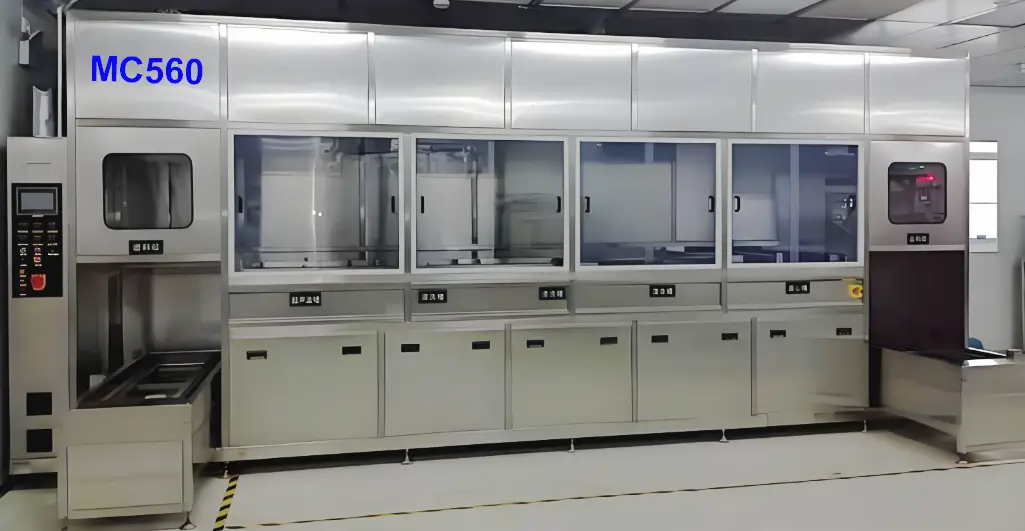

The MC560 Magazine Inline Ultrasonic Cleaning System is a fully automatic inline cleaning equipment specially engineered for precision cleaning ofsemiconductor lead frame magazines. Adopting immersive ultrasonic cleaning technology combined with multi-stage DI water rinsing and hot air drying processes, this industrial ultrasonic cleaner thoroughly removes dust, residual contaminants and tiny impurities on the surface of lead frame magazines. With integrated automatic loading and unloading functions, the equipment realizes one-stop unmanned cleaning production, which is widely applicable to semiconductor packaging, electronic component manufacturing and other high-cleanliness production scenarios.
Designed for standardized mass production, the MC560 lead frame magazine ultrasonic cleaning machine features stable operation, excellent cleaning consistency and simple maintenance, effectively improving the cleanliness and recycling utilization rate of production magazines for electronic factories.

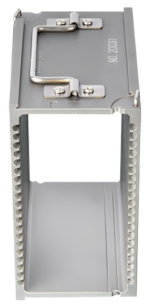

leadframe-magazine
Standard Cleaning Process Flow
The machine adopts a scientific and streamlined full-automatic processing workflow, with no manual intervention in the whole process, ensuring stable and consistent cleaning quality for lead frame magazines:
Basket Loading In → Ultrasonic Cleaning → Spray Rinsing 1 → Ultrasonic Rinsing 2 → Ultrasonic Rinsing 3 → Hot Air Drying → Basket Unloading Out
Core Features & Technical Advantages
1. Corrosion-resistant Stainless Steel Body with Long Service Life
The whole frame and tank body of the MC560 inline ultrasonic cleaning system are made of high-quality industrial stainless steel material, which boasts outstanding acid and alkali resistance, oxidation resistance and corrosion resistance. Through rigorous industrial structural optimization and quality testing, the equipment has a designed service life of 15 years, greatly reducing factory equipment replacement costs and long-term operation costs.
2. Intelligent PC+PLC Dual-language Control System
Equipped with mature PC+PLC integrated programmable control system, the machine supports Chinese and English dual operating interfaces, which can meet the operation habits of domestic and foreign operators. The system runs stably with adjustable cleaning time, temperature and rinsing parameters. It supports customized process settings and one-key automatic operation, realizing intelligent and precise control of the entire cleaning process.
3. Multi-stage Combined Cleaning & Drying Process
This automatic magazine cleaning machine adopts a composite process of immersive ultrasonic cleaning + graded spray rinsing + multi-stage ultrasonic fine rinsing + constant temperature hot air drying. The layered cleaning and rinsing design completely removes stubborn contaminants on lead frame magazines, avoids residual impurities and secondary pollution, and achieves high-precision and zero-dead-angle cleaning effect.
4. Closed Upper Cover Design for Environmental Protection & Energy Saving
The equipment is equipped with a fully closed upper cover structure, which effectively suppresses water vapor evaporation during the ultrasonic cleaning process. It not only reduces the volatilization loss of cleaning medium and saves production consumables, but also eliminates peculiar smell diffusion in the workshop, optimizes the factory production environment, and meets the dust-free and environmental protection production standards of semiconductor workshops.
5. Forward Overflow DI Water Renewal System
The rinsing system adopts a professional rear-to-front DI water overflow renewal mode. The high-purity DI water is updated step by step from the last rinsing tank to the front tank, which always maintains the high purity and freshness of the rinsing water. It effectively prevents cross-contamination between different cleaning stages and ensures ultra-high surface cleanliness of cleaned lead frame magazines.
6. Single Robotic Arm with Automatic Basket Detection
Configured with a high-precision single mechanical transmission arm, the machine supports automatic basket identification and intelligent transmission. The mechanical arm stably and accurately transports cleaning baskets through each cleaning and drying station, realizing fully automatic cycle operation. The intelligent detection function avoids empty running and misoperation, ensuring efficient and stable production rhythm.
7. Real-time DI Water Quality Monitoring System
Built with professional high-precision sensing modules to realizereal-time monitoring of DI water flow and resistivity. The system dynamically tracks water quality data during the rinsing process, automatically records abnormal data and triggers alarm reminders. It ensures that the rinsing water always meets semiconductor-grade high cleanliness standards, making product cleaning quality traceable and controllable.
8. Independent Electric Control Box for Easy Operation & Maintenance
Adopts an independent sealed electrical control box design, which isolates core electrical components from humid and corrosive working environments. The modular layout is reasonable, which is convenient for daily parameter adjustment, equipment operation, circuit inspection and regular maintenance. It effectively improves the stability and service life of the electrical control system.
9. Fully Automatic Loading and Unloading Structure
The MC560 magazine ultrasonic cleaning system is equipped with a complete automatic loading and unloading mechanism, which can realize unmanned automatic feeding and discharging of workpieces. It can be seamlessly connected with front and back-end production equipment to form an independent automatic cleaning production line, greatly saving labor costs and improving overall production efficiency.
Application Industries & Scope
The MC560 Magazine Inline Ultrasonic Cleaning System is professionally customized for semiconductor packaging production lines, mainly used for automatic cleaning of various semiconductor lead frame magazines. It is widely applicable to precision cleaning and cyclic regeneration of packaging magazines in IGBT, IPM, chip packaging, electronic component manufacturing and other industries, providing high-cleanliness guarantee for industrial precision production.
