From Product Brochure to Real Factory
When manufacturers evaluate industrial cleaning equipment, product specifications are important. But there is another question that often matters just as much:
What does the machine actually look like when installed in a production environment?

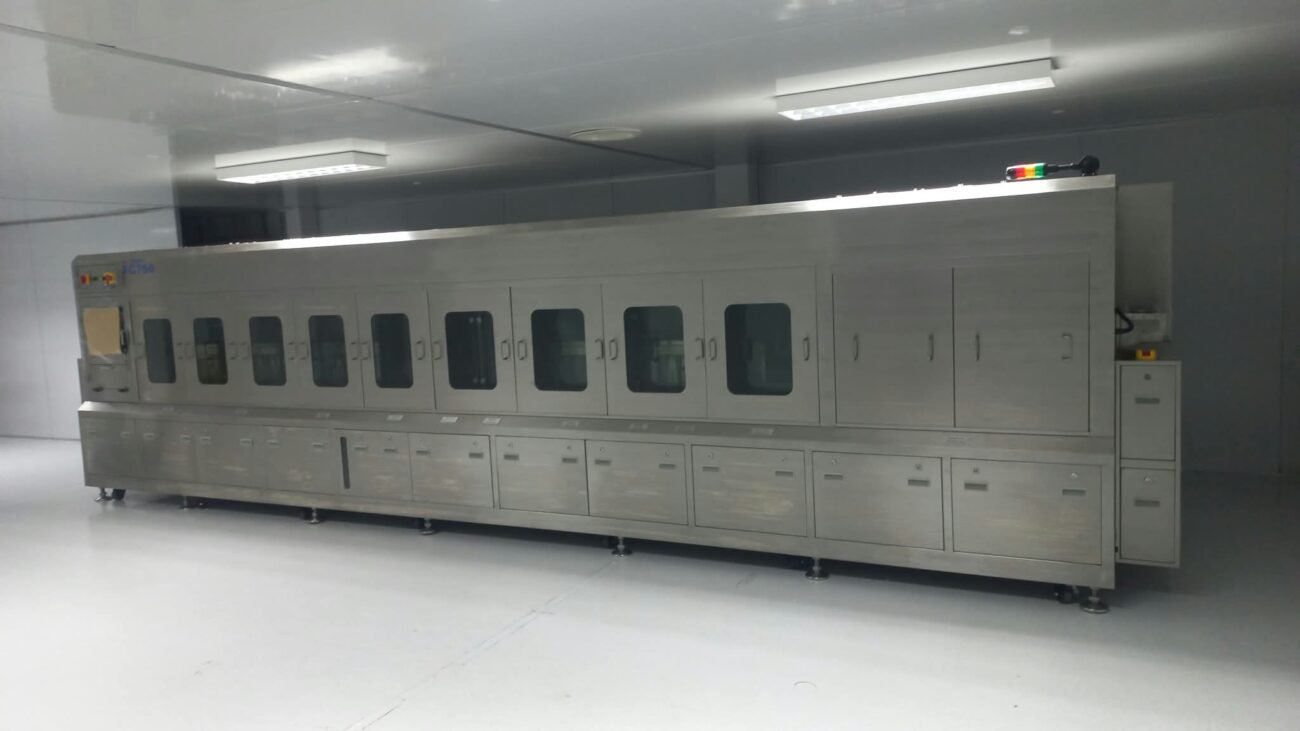

The photo above was shared by an ACTSPRAY customer and shows an FC760 inline cleaning machine installed at the customer’s site.
The image gives a practical view of an industrial inline cleaning system rather than a product rendered image or studio photograph.
What Is an PCBA Inline Deflux Cleaning Machine?
An inline deflux cleaning machine is designed to remove flux residues and other process contaminants from electronic assemblies as part of a continuous production process.
Instead of manually transferring assemblies between separate cleaning stages, the products can pass through a series of controlled process zones.
A typical process may include:
Loading → Chemical Wash / DIW Wash → DI Rinse → Air Drying→ Drying → Unloading
The exact configuration varies according to the application.
What Can Be Seen in the Photo?
The FC760 shown in the customer photo is a long, enclosed stainless-steel production machine.
The enclosed design houses the different process sections inside the equipment. Inspection windows allow operators to observe parts of the internal process while maintaining a controlled equipment enclosure.
The machine is also designed as a production-line system rather than a small laboratory cleaner.
This distinction is important.
A laboratory cleaning machine may be used primarily for process development or sample evaluation, while an inline system needs to address production throughput, material handling, process consistency and integration with upstream and downstream equipment.
Why Is Equipment Integration Important?
Installing an inline cleaning machine involves more than finding enough floor space.
Manufacturers may need to consider:
1. Product flow
The conveyor direction should match the surrounding production line.
2. Production speed
The cleaning process needs to match the required production throughput.
3. Product handling
Fixtures may be required to hold assemblies securely during washing and rinsing.
4. Utilities
The equipment may require electrical power, water, compressed air, exhaust and other factory utilities.
5. Water management
DI water consumption and rinse wastewater should be considered during production planning.
6. Maintenance
Operators need access to pumps, filters, tanks, nozzles and other process components.
A Customer-Site Photo Adds Practical Context
For equipment manufacturers, real customer-site photographs provide a different type of information from conventional product photography.
They show the actual scale of the equipment, the surrounding production environment and the type of facility in which the machine can be installed.
For manufacturers researching inline deflux cleaning machines, these details can be useful when planning their own production layout.
