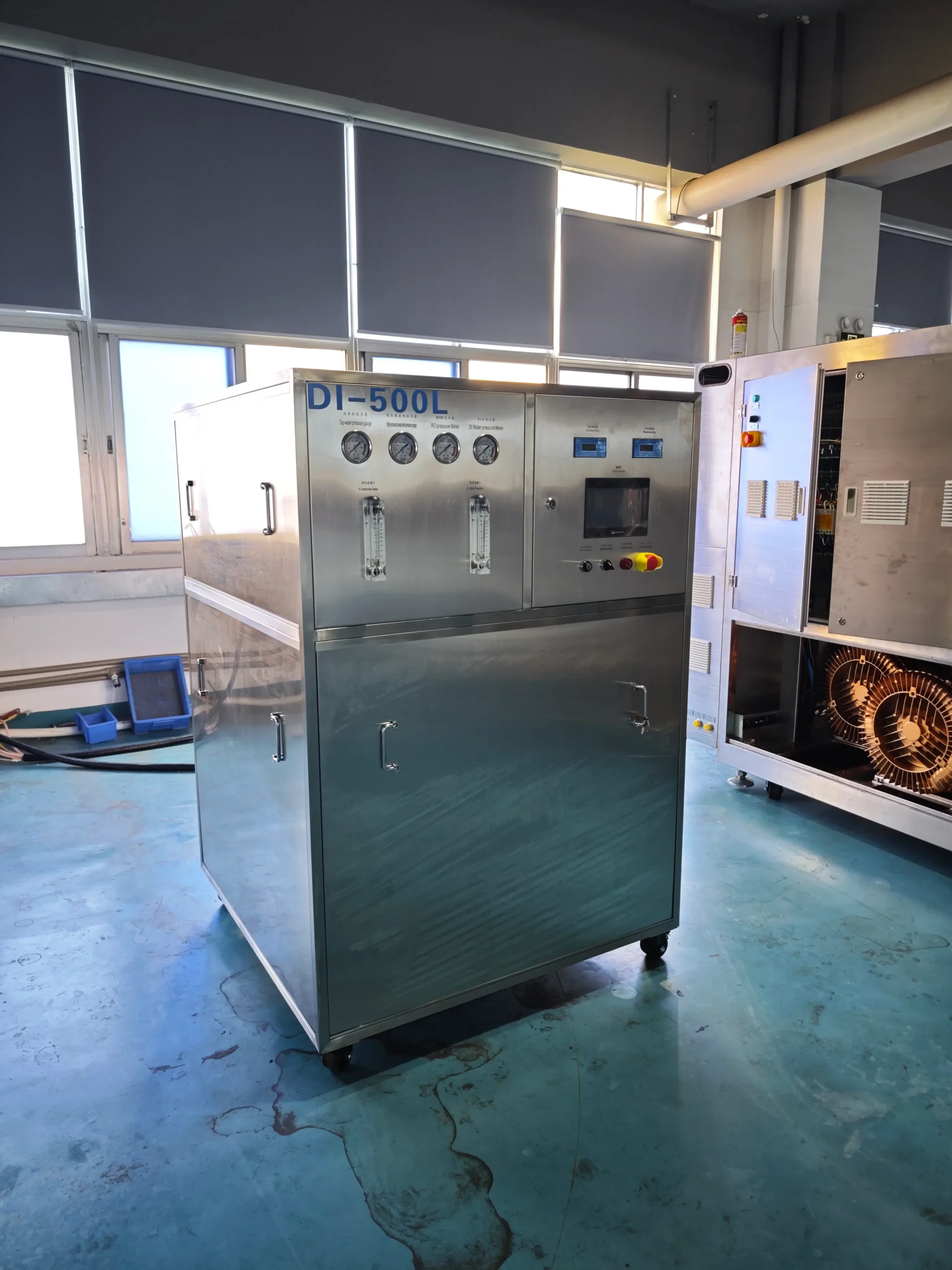

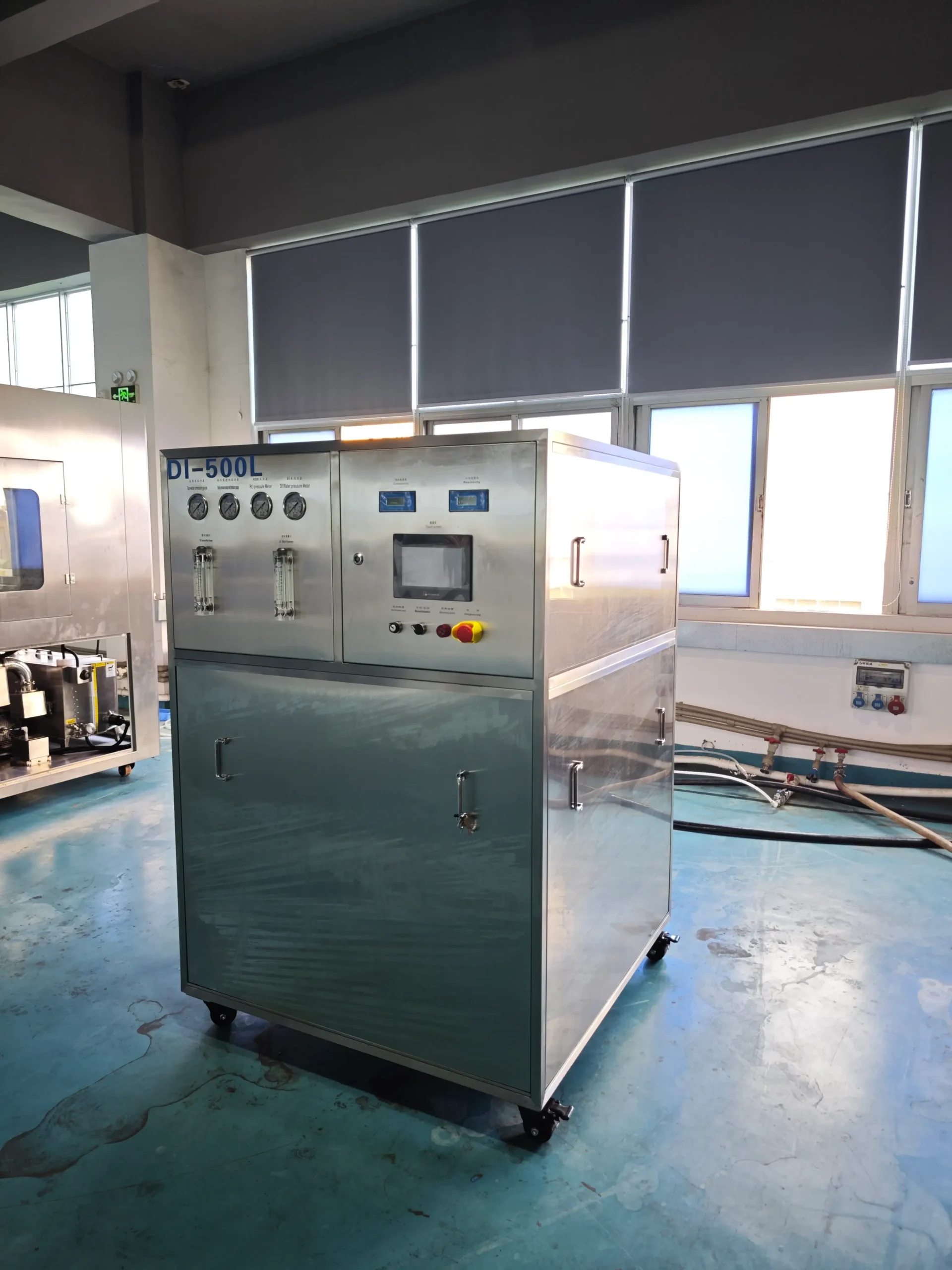

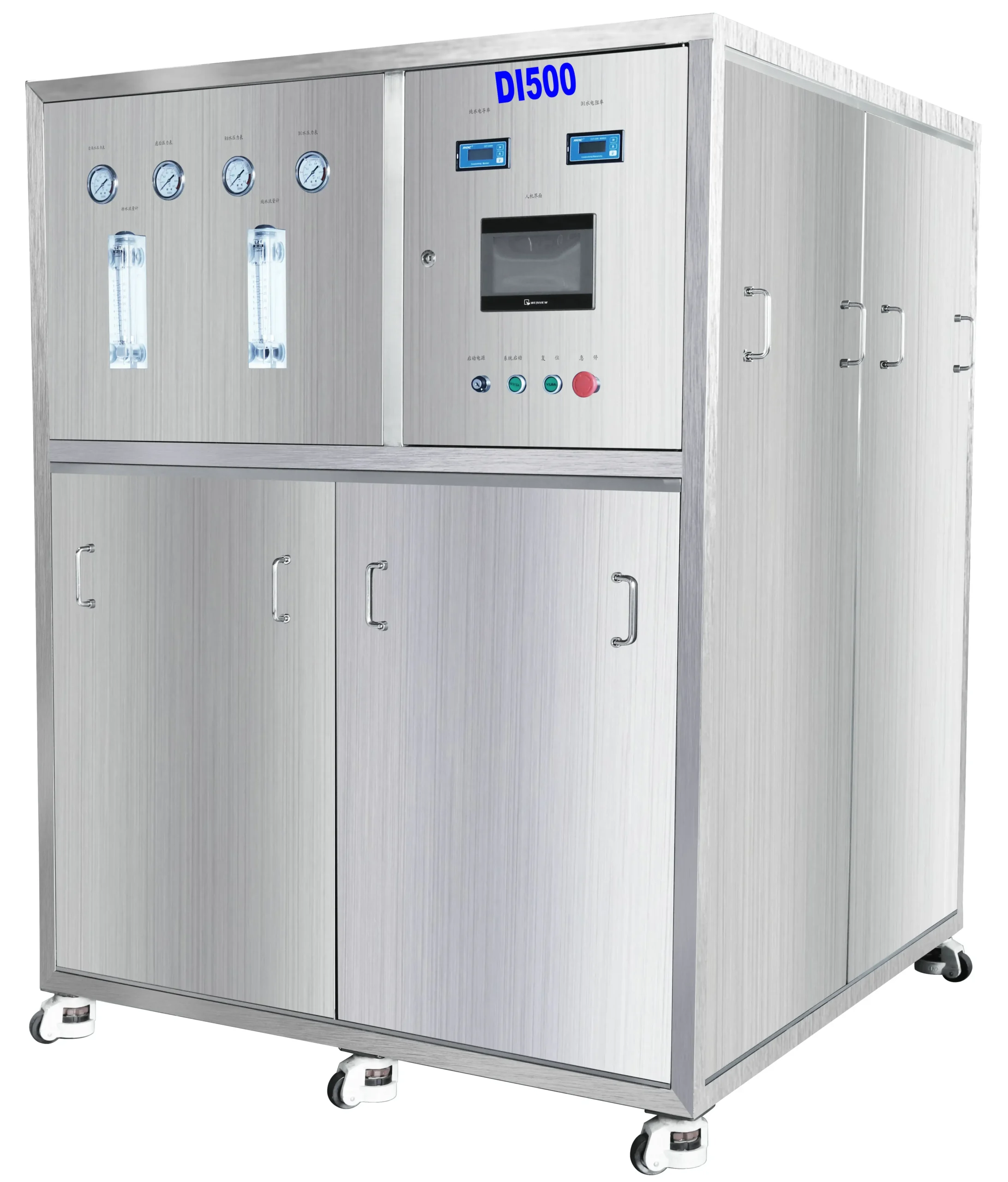

DI Water Generator (Resistivity ≥10MΩ)
Application
DI500 is used to turn tap water into DI water and supply to our PCBA inline cleaning machine for DI water rinse after liquid cleaning.
It has previous treatment system, RO system and MB(Mixed resin bed)system.
Determined by tape water quality, 50% of tape water will be turn into DI water and the rest 50% will be discharged to sewer.
Features
All in one integration design, compact machine.
Advanced DI water purify technology, RO reverse+ MB process.
Automatic working, DI water resistivity up to 15MΩ and stable.
Low electric power, low press RO film.
Multiple MB to improve Di water productivity and resistivity.
24 hour working.
Auto shutdown protection for insufficient water supply.
Auto shutdown protection for high RO outlet pressure, low inlet pressure, and full pure water tank.
Equipment Structure
Specification
| S/N | Item | Technical Spec | Remarks |
| 1 | Tap water supply | 1.5T/Hour | |
| 2 | Tape water supply pressure | 0.2~0.3Mpa | |
| 3 | Tape water pump | 0.37KW | 1set |
| 4 | DI water output | 500L/H | |
| 5 | DI water tank | 160L | 1pc |
| 6 | DI water resistivity | ≥10MΩ | |
| 7 | DI water pressure pump | 0.37KW | 1set |
| 8 | Multi-material filter | 25L Quartz Sand+ Carbon | 1pc |
| 9 | Cationic softener | 25L cation resin | 1pc |
| 10 | Filter | 20inch 5um | 2pcs |
| 11 | High pressure pump | 1.1KW | 1set |
| 12 | RO film | 40*40 | 2pcs |
| 13 | MB polishing resin | 25L+25L | 2pcs |
| 14 | Power | AC380V,50/60HZ,2KW | |
| 15 | Machine size | L1100*W110*H1600mm | |
| 16 | Weight | 430kg | |
| 17 | Material | SUS304 water tank, SUS201 frame |
