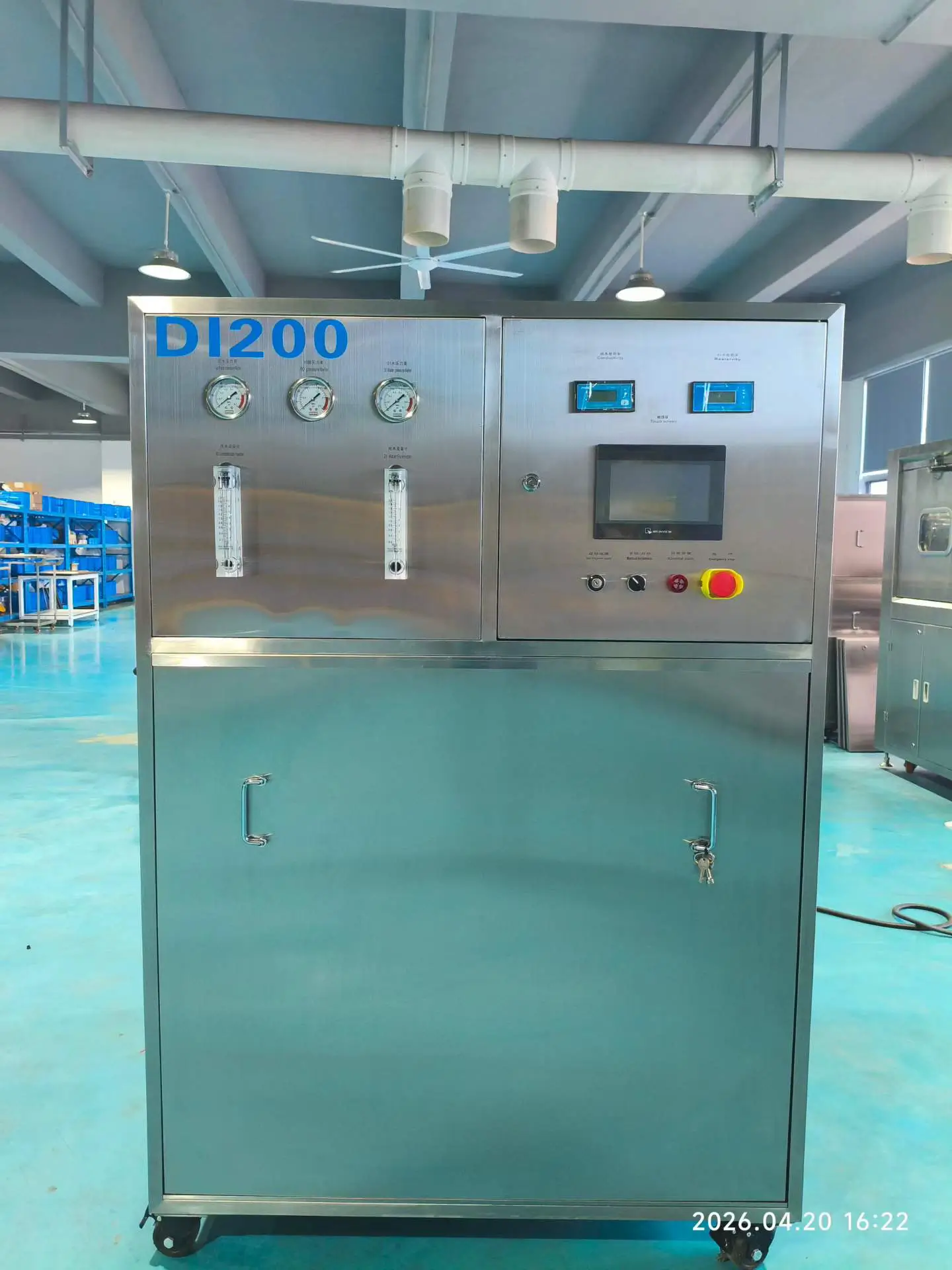

DI200 DI Water Generator Automatic Deionized Water Purifier with RO System for PCBA Cleaning Production 200L/H

DI200  is used to turn tap water into DI water and supply to our PCBA batch type cleaning machine for DI water rinse after liquid cleaning. It consists of three main components: pre-treatment system, RO reverse osmosis system, and MB mixed bed system. The equipment features easy operation, stable performance, and fully automatic operation, ensuring high effluent resistivity.

Categories: , Tags: , , , , , , Brand:
Description

Features

All in one integration design, compact machine.

Advanced DI water purify technology, RO reverse+ MB process.

Automatic working, DI water resistivity up to 15MΩ and stable.

Low electric power, low press RO film.

Multiple MB to improve Di water productivity and resistivity.

24 hour working.

Auto shutdown protection for insufficient water supply.

Auto shutdown protection for high RO outlet pressure, low inlet pressure, and full pure water tank.

Equipment structure

Specification document

ItemTechnical Specifications
Raw Water Supply1.5T/H
Raw Water Pressure0.15~0.3Mpa
DI Water Output250L/H
DI Water Tank160L
DI Water Resistivity≥10MΩ
DI Water Pressure Pump0.37KW
Filter System25L Quartz Sand + Activated Carbon
Cation Softener25L Softening Resin
Filter20inch 5μm * 2 pcs
High Pressure Pump1.1KW
RO Membrane1 pcs
Polishing Resin50L (2 tanks)
Control byPLC+HDMI
Power SupplyAC380V,50/60HZ,1.6KW
Machine DimensionsL1100*W1100x*H1600mm
Machine Weight400kg
Equipment MaterialDI water tank–SUS304;Out frame and cover–SUS201
